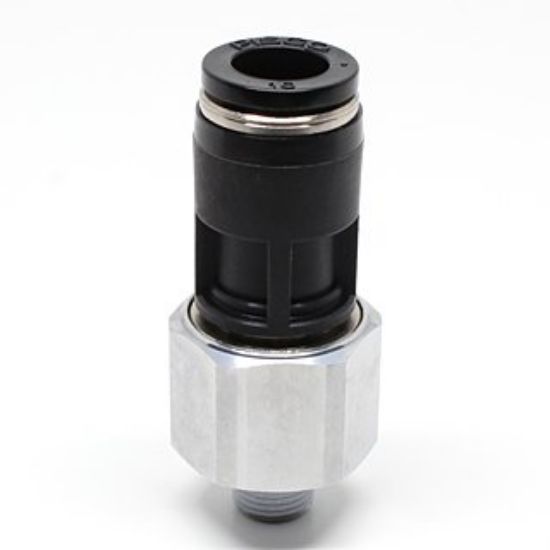

Pisco RC10-01 Rotary Joint

Pisco RC10-01 Rotary Joint
Manufacturer: Pisco
SKU: PS-RC10-01
Manufacturer part number: RC10-01

Pisco RC10-01 Rotary Joint

Size
Tube outer diameter (φD): 10mm
screw size (R): R1/8

Features
● One-touch fittings that can be piped to the shaking and rotating parts of equipment.
- Since bearings are used for the rotating part, it can be used for the swing part and the rotating part.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 300min -1
●Rotation torque: 2N/ cm

Material
●Resin body: PBT
●Metal body: brass + chrome plating
●Open ring: POM
●Seal rubber: NBR , FKM

Mass

68g
