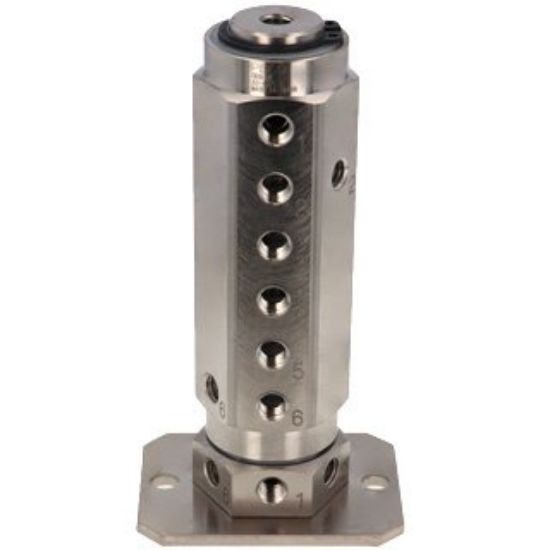

Pisco RB6-M6 Rotary Block

Pisco RB6-M6 Rotary Block

Size
Female thread size (M1): M6×1
Female thread size (M2): M6×1

Features
● Ideal for piping parts of rotating parts such as index tables.
- Secure 6 circuits with one unit.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 100min ^-1
●Rotational torque: 1N/ cm

Material
●Metal body: brass + electroless nickel plating

Mass

430g
