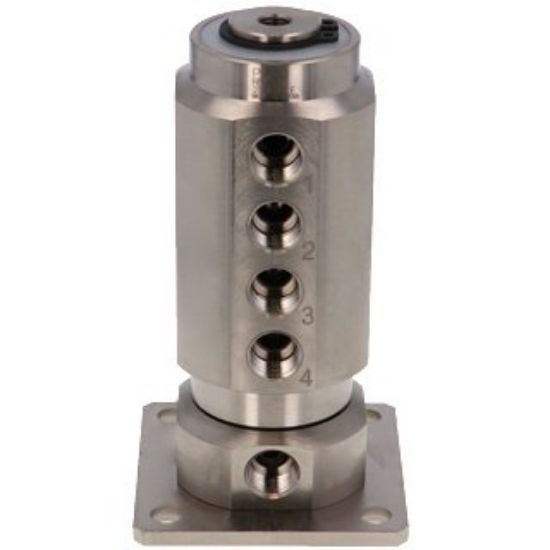

Pisco RB4-01 Rotary Block

Pisco RB4-01 Rotary Block

Size
Screw size (Rc1): Rc1/8
Screw size (Rc2): Rc1/8

Features
● Ideal for piping parts of rotating parts such as index tables.
- Secure 4 circuits with one unit.

Specifications
● Fluid used: Air
● Maximum operating pressure: 0.9 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (non-freezing)
●Allowable rotation speed: 110min-1
- Rotation torque: 0.5N / cm

Material
● Metal body: brass + electroless nickel plating

Mass

630g
