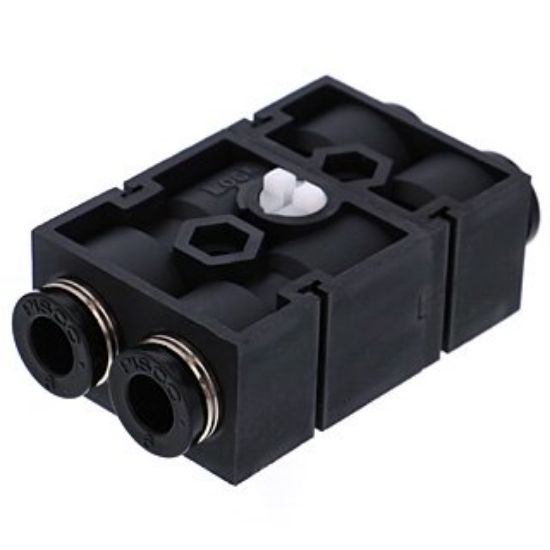

Pisco QC6-6 Connector

Pisco QC6-6 Connector

Size
Tube outer diameter (φD1): 6 mm
Tube outer diameter (φD2): 6 mm

Features
● Multiple tubes can be detached at once. Easy piping work when moving equipment.
● Multiple connectors can be combined vertically and horizontally using connector bands.

[Specifications]
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

29g
