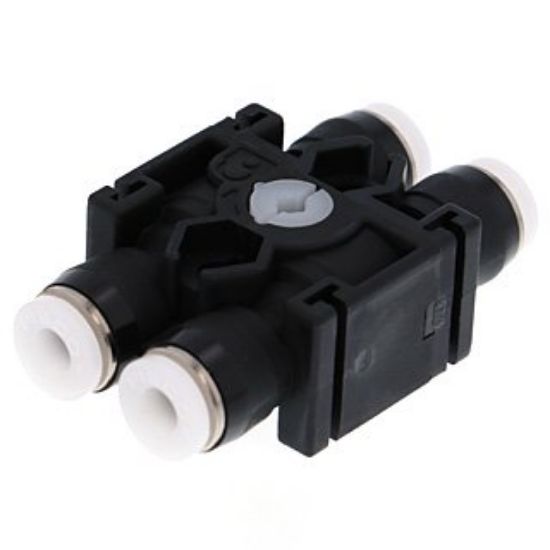

Pisco QC1/8-1/8M Connector

Pisco QC1/8-1/8M Connector

Size
Tube outer diameter (φD1): 1/8
tube outer diameter (φD2): 1/8

Features
● Multiple tubes can be detached at once. Easy piping work when moving equipment.
● Multiple connectors can be combined vertically and horizontally using connector bands.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

8.6g
