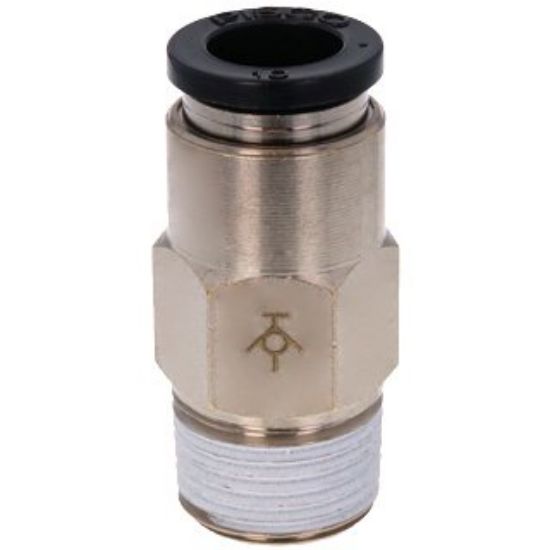

Pisco PSC10-03 Stop Fitting

Pisco PSC10-03 Stop Fitting
Manufacturer: Pisco
SKU: PS-PSC10-03
Manufacturer part number: PSC10-03

Pisco PSC10-03 Stop Fitting

Size
Tube outer diameter (φD): 10 mm
screw size (R): R3/8

Features
● One-touch fitting with built-in stop mechanism. Air stops when the tube is unplugged, and air flows when the tube is connected.
- Easy to attach and detach the tube by adopting a two-stage structure of conduction.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

37g
