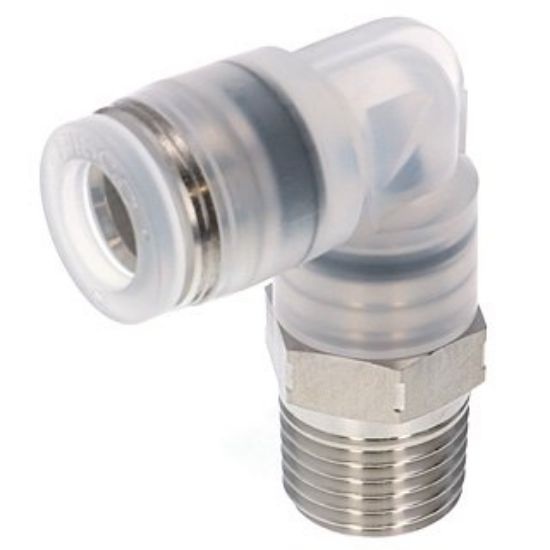

Pisco PPL8-02SUS Polypropylene Fitting

Pisco PPL8-02SUS Polypropylene Fitting

Size
Tube outer diameter (φD): 8mm
screw size (R): R1/4

Features
● PP suitable for clean environment for the main body material and EPDM as the seal material.
- Resin body color is clear (translucent), fluid (liquid) can be confirmed.
- Responding to needs in a wide range of fields by oil-free specifications.
- The screw part material adopts SUS304.

Specifications
● Fluid used: air, water (with conditions), others (conditional)
● Maximum working pressure: 1.0 MPa (at 0 to 20 °C)
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 80 °C (without freezing)
* When the fluid used is water or other chemicals, be sure to observe the following conditions.
1. When using water or liquid, keep the surge pressure below the maximum operating pressure.
2. Be sure to use an insert ring when using water or liquid.
3. For chemicals, mixed gas, etc., please use after confirming that the compliance with our specifications may differ depending on the usage conditions.

Material
● Resin body: PP
● Metal body: SUS304
●Seal rubber: EPDM

Mass

21.5g
