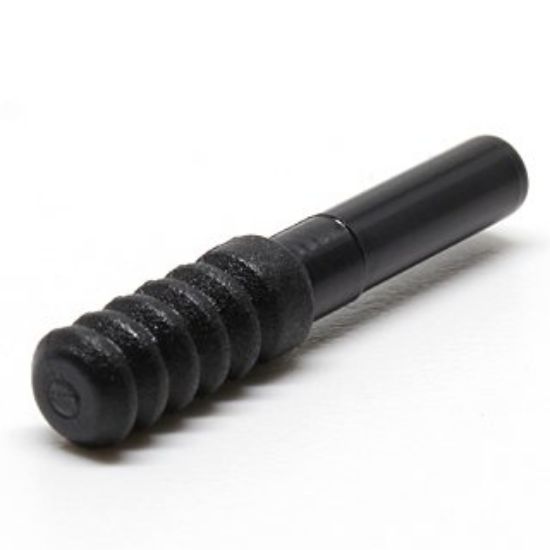

Pisco PP3M Mini Fitting

Pisco PP3M Mini Fitting

Size
Applicable fitting diameter (φD): 3mm

Features
● Compared to the standard type, it succeeded in miniaturization of 40% of the capacity ratio.
- Easy to attach and detach the tube even if it is ultra-small. : The open ring adopts an elliptical shape.
-One-touch fittings for ultra-fine tube piping are available. : φ1.8, φ2mm size is ideal for piping to small actuators, etc.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
●Resin body: PBT

Mass

0.2g
