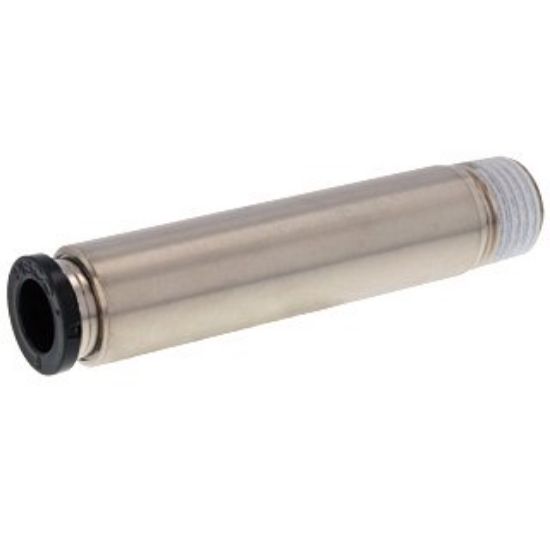

Pisco POC8-02-L60 Long Fitting

Pisco POC8-02-L60 Long Fitting

Size
Tube outer diameter (φD): 8mm
screw size (R): R1/4
Total length: 60 (68.5 mm)

Features
● 8 types of body total length are prepared. The length suitable for the application can be selected.
- Ideal when the mounting location is narrow or when the mounting pitch is narrow. : Since hexagonal hole processing is applied to the inside of the main body, installation can be attached with a hex wrench.

Specifications
● Fluid used: Air, water (conditional)
● Maximum working pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
* When the fluid used is water, be sure to observe the following conditions.
1. When using water, keep the surge pressure below the maximum operating pressure.
2. General tap water can be used. For other water use, please contact us.
3. Be sure to use an insert ring when using water.

Material
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

58g
