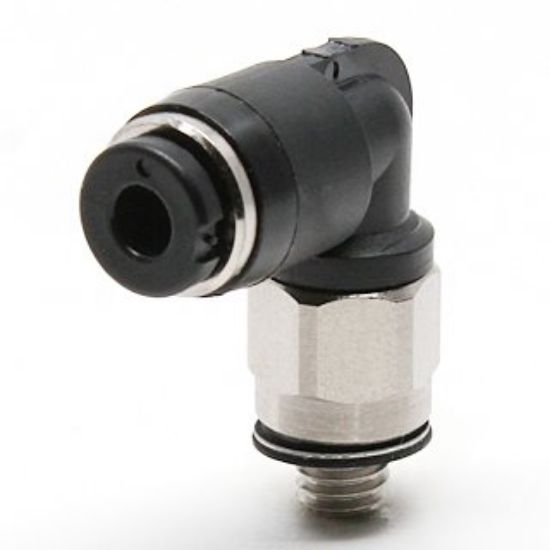

Pisco PL180-M3M Mini Fitting

Pisco PL180-M3M Mini Fitting

Size
Tube outer diameter (φD): 1.8mm
screw size (M): M3×0.5

Features
● Compared to the standard type, it succeeded in reducing the capacity by 40%.
- Easy to attach and detach the tube even if it is ultra-small. : The open ring adopts an elliptical shape.
-One-touch fittings for ultra-fine tube piping are available. : φ1.8, φ2mm size is ideal for piping to small actuators, etc.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: comfortable cutting steel + electroless nickel plating, or special stainless steel (corrosion resistance is equivalent to SUS303)
● Open ring: POM
● Seal rubber: NBR

Mass

1.4g
