PHW1/4-N2U TUBING CONNECTOR
PHW1/4-N2U TUBING CONNECTOR

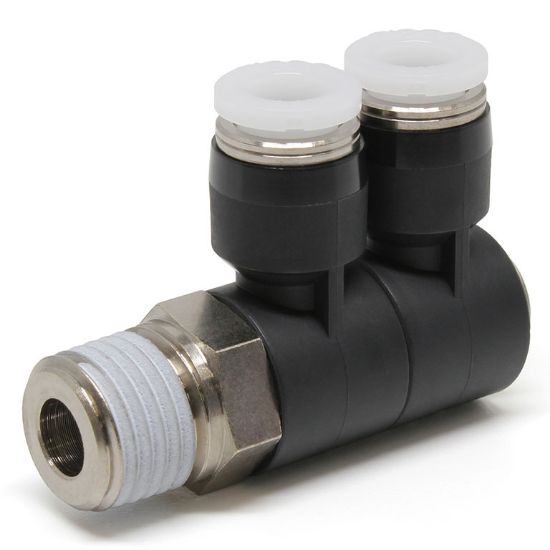

Picture of Pisco PHW1/4-N2U Standard Fitting

Pisco PHW1/4-N2U Standard Fitting

Pisco PHW1/4-N2U Standard Fitting, PHW1/4N2U TUBING CONNECTOR
Manufacturer: Pisco
SKU: PS-PHW1/4-N2U
Manufacturer part number: PHW1/4-N2U
$8.64 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

PHW1/4-N2U

RoHS2 Compliant

The Tube Fitting comes in a wide variety of models to meet all your needs in pneumatic piping.
Water is admitted conditionally.

Model type: Double Banjo
Weight: 34.0g
Shipping unit: 1pc.
Resin: PBT
Metal: Brass with electroless nickel plating
Seal rubber: NBR


Specifications

Fluid mediumAir, Water (Conditional*)
Max. operating pressure1.0MPa
Max. vacuum-100kPa
Operating temp. range0～60℃（No freezing）

Warnings

* Make sure to follow the instructions below when the fluid medium is water.

Surge pressure must be controlled lower than max. operating pressure when using water as a fluid medium.

Be sure to place Insert Ring (WR) into the tube edge when using water as a fluid medium.
