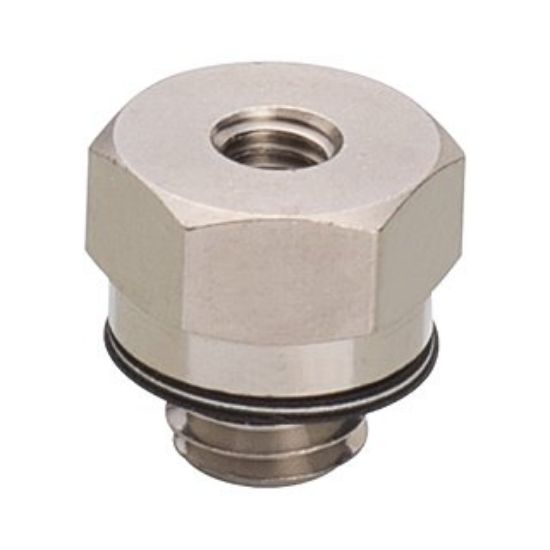

Pisco PFM5-M3M Mini Fitting

Pisco PFM5-M3M Mini Fitting

Size
Screw size (M1): M5×0.8
Female thread size (M2): M3×0.5

Features
● Compared to the standard type, it succeeded in miniaturization of 40% compared to the capacity.
- Easy to attach and detach the tube even if it is ultra-small. : The open ring adopts an elliptical shape.
-One-touch fittings for ultra-fine tube piping are available. : φ1.8, φ2mm size is ideal for piping to small actuators, etc.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating

Mass

2.4g
