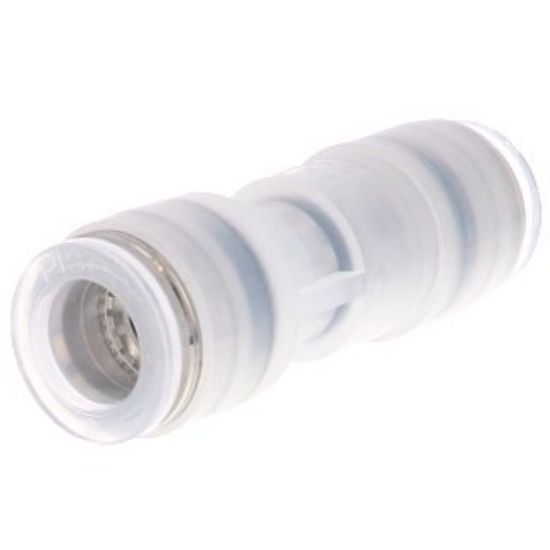

Pisco PCVLU12-12 Check Valve Polypropylene

Pisco PCVLU12-12 Check Valve Polypropylene

Size
Tube outer diameter (φD): 12 mm

Features
● Water (liquid) can be used. The resin body material adopts PP suitable for a clean environment.
- Resin body color is clear (translucent) and it is possible to check the fluid (liquid).
● Ideal for fields where "copper-based metal-free", "low concentration ozone countermeasures" and "non-grease" are required.
● Working pressure to 10kPa ⇒5kPa. It is possible to secure the flow rate even at pressures that were not operated by conventional products.
- Because the spring is not used for structural parts, noise generation is reduced compared to conventional products.

Specifications
● Fluid used: Air, water (with conditions), others (conditional)
● Maximum working pressure: 1.0 MPa (at 0 to 20 °C)
● Vacuum pressure used: -100 kPa
● Minimum operating differential pressure: 5 kPa (at) 25 °C) (Differential pressure that begins to conduct to the secondary side when air is applied from the free flow direction)
● Operating temperature range: 0 to 80 °C (without freezing)
● Minimum check-in pressure: 0.01 MPa
※ When the fluid used is water and other chemicals, be sure to observe the following conditions.
1. When using water or liquid, keep the surge pressure below the maximum operating pressure.
2. Be sure to use an insert ring when using water or liquid.
3. For chemicals, mixed gas, etc., please use after confirming that the compliance with our specifications may differ depending on the usage conditions.

※ There are other precautions. Please check the product details.

Material
● Resin body: PP
● Seal rubber: EPDM
● Valve body packing: FKM

Mass

33.4g
