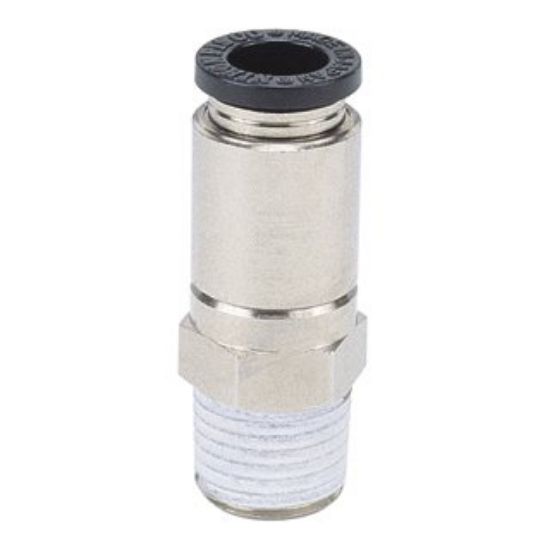

Pisco PCT8-02 Standard Fitting

Pisco PCT8-02 Standard Fitting

Size
Tube outer diameter (φD): 8mm
screw size (R): R1/4

Features
●Prevents twisting of the tube by air tools, etc.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Sealing rubber: NBR

Mass

145g
