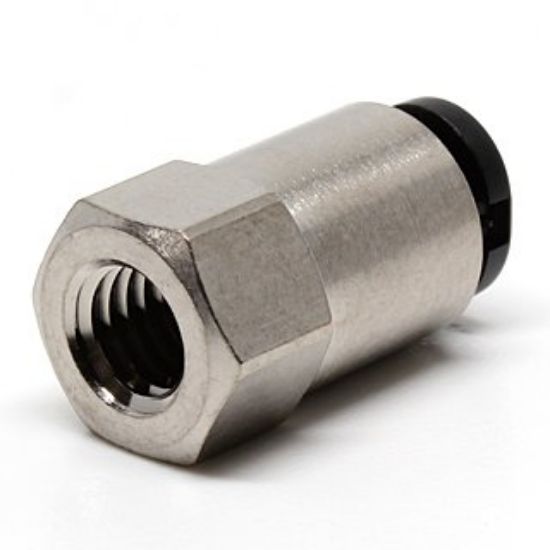

Pisco PCF3-M5M Mini Fitting

Pisco PCF3-M5M Mini Fitting

Size
Tube outer diameter (φD): 3mm
female thread size (M): M5×0.8

Features
● Succeeded in miniaturization of 40% of capacity compared to standard type.
- Easy to attach and detach the tube even if it is ultra-small. : The open ring adopts an elliptical shape.
-One-touch fittings for ultra-fine tube piping are available. : φ1.8, φ2mm size is ideal for piping to small actuators, etc.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

4.2g
