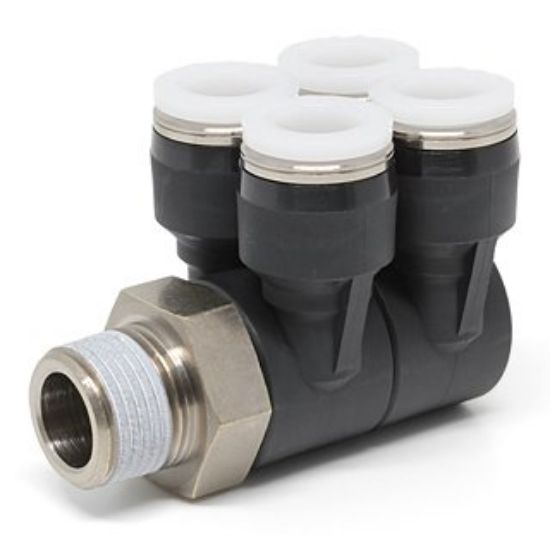

Pisco PAW3/8-03 Standard Fitting



Size
Tube outer diameter (φD): 3/8
screw size (R): R3/8

Features
● One-touch fittings for all piping with a rich lineup. Water can also be used depending on the conditions.
● High performance and high quality: Lock claw grips evenly around the tube. Even after many years, it feels like a new one.
The uniquely shaped elastic body sleeve shuts out air leakage.
- Compact centralized piping is possible.

Specifications
● Fluid used: Air, water (conditional)
● Maximum working pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
* When the fluid used is water, be sure to observe the following conditions.
1. When using water, keep the surge pressure below the maximum operating pressure.
2. General tap water can be used. For other water use, please contact us.
3. Be sure to use an insert ring when using water.

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

99g
