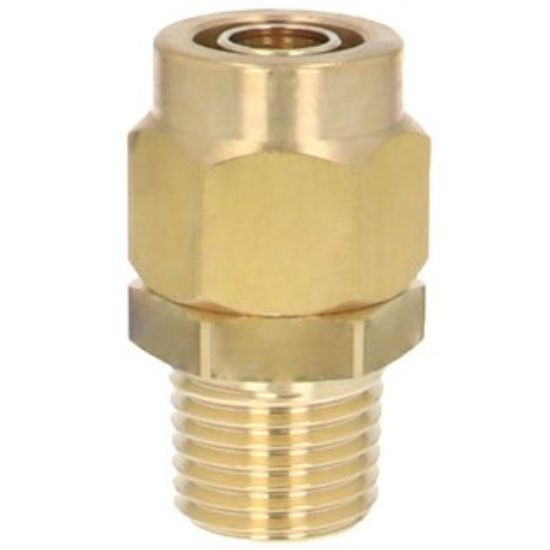

Pisco NKC1075-02 Brass Compression Fitting

Pisco NKC1075-02 Brass Compression Fitting
Manufacturer: Pisco
SKU: PS-NKC1075-02
Manufacturer part number: NKC1075-02

Pisco NKC1075-02 Brass Compression Fitting

Size
Tube outer diameter × Inner diameter (φD): 10×7.5 mm
screw size (R): R1/4

Features
● Special brass is used for the metal body. Greatly improves corrosion resistance to water. Ideal for automotive industry and mold temperature control.
- Because there is no sleeve unnecessary, there is no need to worry about forgetting to attach the sleeve, loss.

Specifications
● Fluid used: air, water (with conditions), others (conditional)
● Maximum working pressure: According to the maximum working pressure of the tube.
● Vacuum pressure used: -100 kPa
● Operating temperature range: Varies depending on the specification range of the tube. (Non-freezing)
*1. For fluids other than air and water, the conformance of our specifications may differ depending on the conditions of use, so please use it after confirmation.
※2. When using water or liquid, keep the surge pressure below the maximum operating pressure.

Material
● Metal body: Special brass

Mass

29g
