Pisco MZB14 Main Block

Pisco MZB14 Main Block

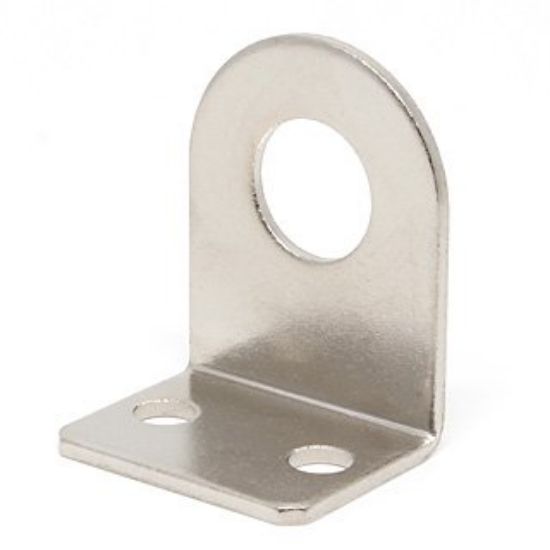

Fixing bracket

Compatible mounting models: MKR0806, MKR1206

Features
● Combination free manifold for centralized distribution.
● The same flow rate as steel pipe piping is secured. Moreover, the appearance dimensions are about half that of steel pipes.
- It is possible to freely combine 14 types of different shapes.

Specifications
● Operating fluid: Air
● Maximum operating pressure: 1.0MPa (0.9MPa when using coupling module: QMC20)
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (without freezing)


Material
● Metal body: SPCC + electroless nickel plating

Mass

26g
