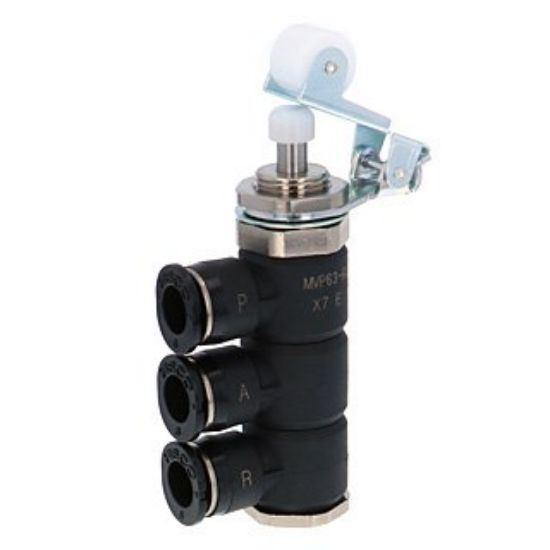

Pisco MVP63-RJ Mechanical Valve

Pisco MVP63-RJ Mechanical Valve

Size
tube outer diameter (φD): 6mm

Number of ports
3-way valve

Conduction method
normal close

Features
● Push type pneumatic input opening and closing valve.
● Operability is not affected by pressure due to the spool valve mechanism.
- 3-way valve type exhausts the residual pressure on the output side at the time of closure.

Specifications
●Fluid used: Air
●Operating pressure range: 0 to 0.7 MPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Refueling: ISO VG32 (turbine oil 1 type)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

38g
