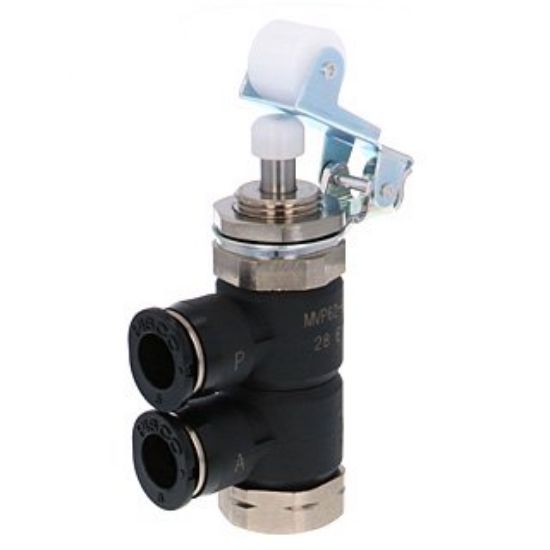

Pisco MVP63-R Mechanical Valve

Pisco MVP63-R Mechanical Valve

Size
Tube outer diameter (φD): 6 mm

Features
● Push type pneumatic input opening and closing valve.
● Operability is not affected by pressure due to the spool valve mechanism.
-A three-way valve that exhausts the residual pressure on the output side at the time of closing and a two-way valve without an exhaust function are available.

Specifications
●Fluid used: Air
●Operating pressure range: 0 to 0.7 MPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Refueling: ISO VG32 (turbine oil 1 type)

Material
● Resin body: PBT
● Metal body: Brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

MVP62-R: 35g, MVP63-R:34g
