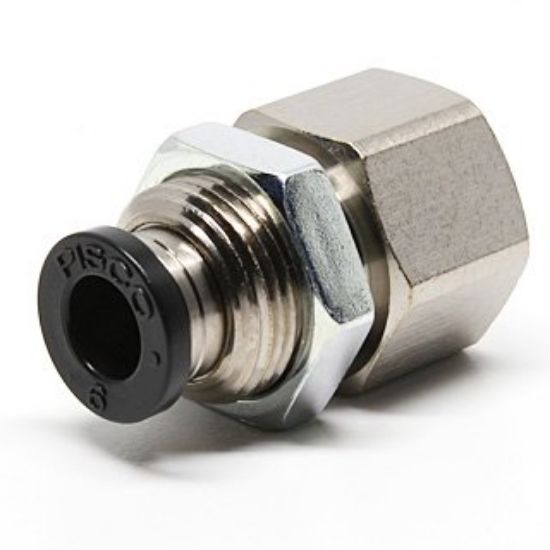

Pisco MKR1206 Mian Block

Pisco MKR1206 Mian Block

Parts for air supply port

Size
assembly screw size (M): M12×1
tube outer diameter (φD): 6mm

Features
● Combination free manifold for centralized distribution.
● The same flow rate as steel pipe piping is secured. Moreover, the appearance dimensions are about half that of steel pipes.
- It is possible to freely combine 14 types of different shapes.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa (0.9MPa when using coupling module: QMC20)
●Vacuum pressure used: -100kPa
- Operating temperature range: 0 to 60 °C (non-freezing)

Material
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

28g
