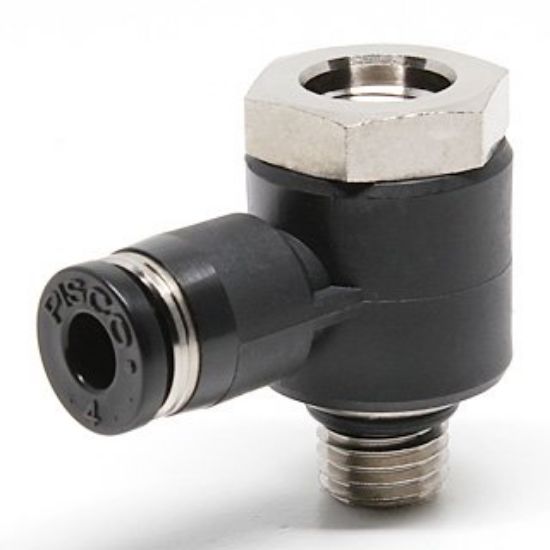

Pisco MHQ0804 Main Blcok

Pisco MHQ0804 Main Blcok
Manufacturer: Pisco
SKU: PS-MHQ0804
Manufacturer part number: MHQ0804

Pisco MHQ0804 Main Blcok

Parts for
air outlet


Size
Assembly screw size (M): M8×1
Tube outer diameter (φD): 4 mm

Features
● Combination free manifold for centralized distribution.
● The same flow rate as steel pipe piping is secured. Moreover, the appearance dimensions are about half that of steel pipes.
- It is possible to freely combine 14 types of different shapes.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa (0.9MPa when using coupling module: QMC20)
●Vacuum pressure used: -100kPa
- Operating temperature range: 0 to 60 °C (non-freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

16g
