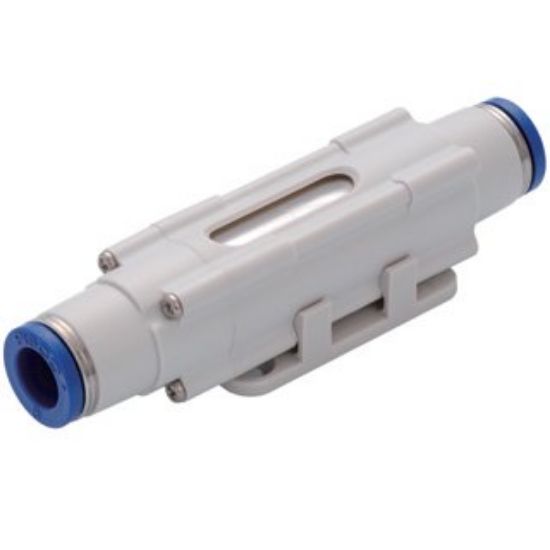

Pisco MFU50-66 Hollow Fiber Membrane Filter

Pisco MFU50-66 Hollow Fiber Membrane Filter

Size
Tube outer diameter (φD): 6mm

Features
● By adopting hollow fiber membrane, filtration excess: 0.01 μm, collection efficiency: 99.99% is realized. Ideal for semiconductors, instrumentation, printing and medical fields.
●Compact, lightweight, and large flow rate.
- Add explosion-proof function. The filter case was covered with the resin body.
- Metal material in oil-free specifications, all stainless steel.
● Packaging is cleanroom packaging specification as standard.

Specifications
● Fluid used: Air, Nitrogen
● Maximum operating pressure: 1.0MPa (for nitrogen: 0.99 MPa) (at 20 °C)
● Operating temperature range: 5 to 50 °C
● Excessive filtration: 0.01 μm (collection efficiency: 99.99%) ( ( According to our measurement conditions)
● Pressure resistance: 1.5MPa (at 20°C)
● Difference pressure: 0.25MPa (at 20°C)
●Maximum processing flow rate: 50L/min[ANR]
●Membrane area: 107cm²

Material
● Resin body: PBT
● Metal part: SUS304
● Filter case: PA
● Seal rubber: FKM

Mass

21g
