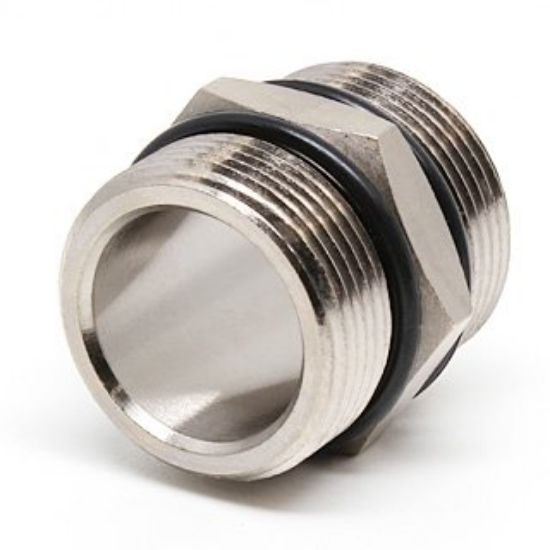

Pisco MBN1818 Main Block

Pisco MBN1818 Main Block
Manufacturer: Pisco
SKU: PS-MBN1818
Manufacturer part number: MBN1818

Pisco MBN1818 Main Block

Assembly screw size conversion parts

Size
assembly screw size (M): M18×1

Features
● Combination free manifold for centralized distribution.
● The same flow rate as steel pipe piping is secured. Moreover, the appearance dimensions are about half that of steel pipes.
- It is possible to freely combine 14 types of different shapes.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa (0.9MPa when using coupling module: QMC20)
●Vacuum pressure used: -100kPa
- Operating temperature range: 0 to 60 °C (non-freezing)

Material
● Metal body: brass + electroless nickel plating
●Seal rubber: NBR

Mass

19g
