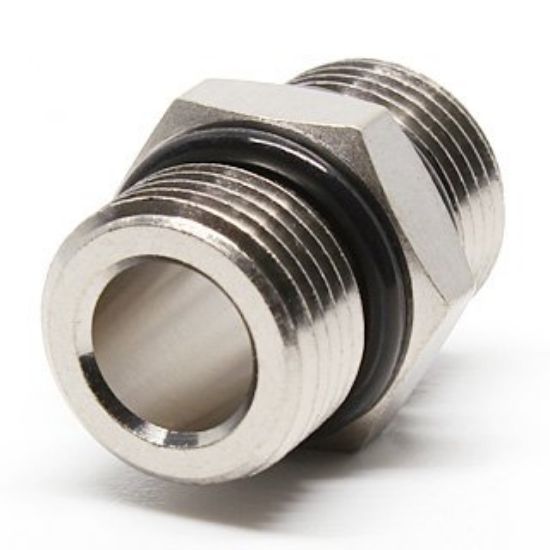

Pisco MBN1212 Main Block

Pisco MBN1212 Main Block

Assembly screw size conversion parts

Size
Assembly screw size (M): M12×1

Features
● Combination free manifold for centralized distribution.
● The same flow rate as steel pipe piping is secured. Moreover, the appearance dimensions are about half that of steel pipes.
- It is possible to freely combine 14 types of different shapes.

Specifications
● Operating fluid: Air
● Maximum operating pressure: 1.0MPa (0.9MPa when using coupling module: QMC20)
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
●Metal body: brass + electroless nickel plating
●Seal rubber: NBR

Mass

13g
