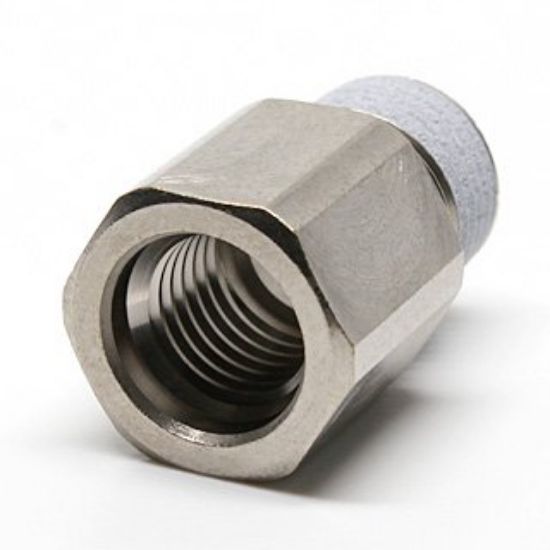

Pisco MBA0801 Main Block

Pisco MBA0801 Main Block
Manufacturer: Pisco
SKU: PS-MBA0801
Manufacturer part number: MBA0801

Pisco MBA0801 Main Block

Parts for
air supply port


Size
Assembly screw size (M): M8×1
screw size (R): R1/8

Features
● Combination free manifold for centralized distribution.
● The same flow rate as steel pipe piping is secured. Moreover, the appearance dimensions are about half that of steel pipes.
- It is possible to freely combine 14 types of different shapes.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa (0.9MPa when using coupling module: QMC20)
●Vacuum pressure used: -100kPa
- Operating temperature range: 0 to 60 °C (non-freezing)


Material
●Metal body: brass + electroless nickel plating

Mass

11g
