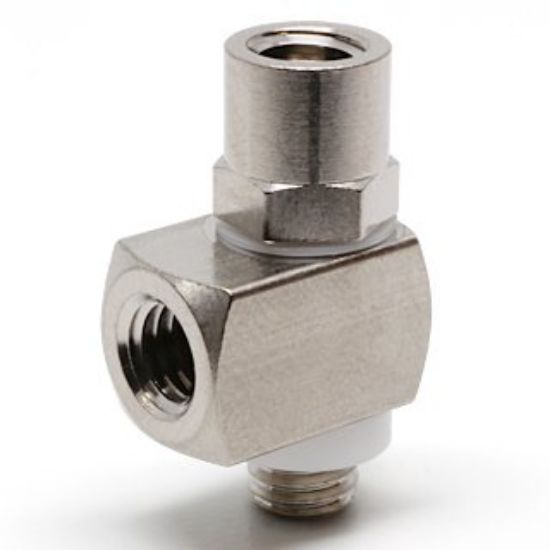

Pisco LD-FM5-M5 Minimal Barb

Pisco LD-FM5-M5 Minimal Barb

Size
Screw size (M1): M5×0.8
Female thread size (M2): M5×0.8

Features
● Barb fitting ideal for space-saving piping. In combination with our vacuum tube (UD), it is also ideal for piping vacuum equipment.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 50 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating
●Gasket: POM

Mass

7.2g
