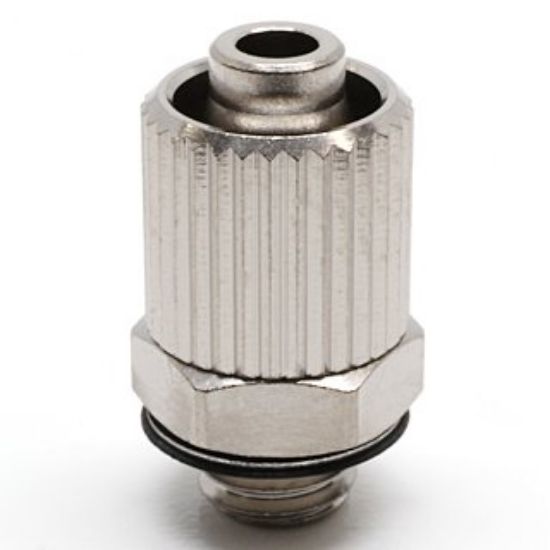

Pisco LCN-0640-M5 Minimal Barb

Pisco LCN-0640-M5 Minimal Barb
Manufacturer: Pisco
SKU: PS-LCN-0640-M5
Manufacturer part number: LCN-0640-M5

Pisco LCN-0640-M5 Minimal Barb

Size
Tube outer diameter × Inner diameter (φD): 6×4 mm
screw size (M): M5×0.8

Features
● Barb fitting ideal for space-saving piping. In combination with our vacuum tube (UD), it is also ideal for piping vacuum equipment.
- Tightening type can tighten the tube only by hand tightening.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 50 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating


Mass

3.4g
