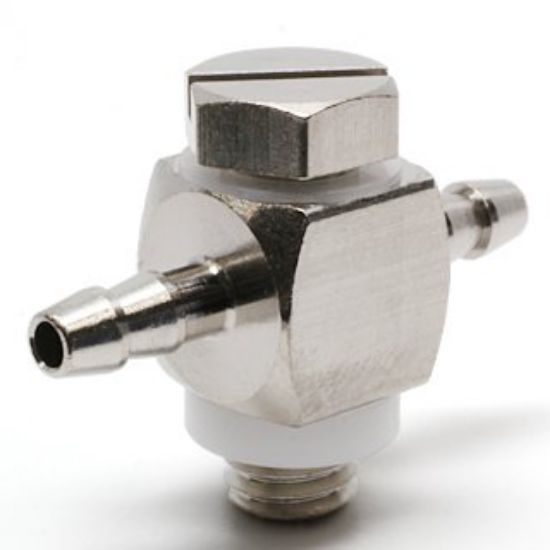

Pisco LB-0425-M5 Minimal Barb

Pisco LB-0425-M5 Minimal Barb
Manufacturer: Pisco
SKU: PS-LB-0425-M5
Manufacturer part number: LB-0425-M5

Pisco LB-0425-M5 Minimal Barb

Size
Tube inner diameter (φD): 2.5mm
screw size (M): M5×0.8

Features
● Barb fitting ideal for space-saving piping. In combination with our vacuum tube (UD), it is also ideal for piping vacuum equipment.

Specifications
● Fluid used: Air
● Maximum operating pressure: 0.5 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 50 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating
●Gasket: POM

Mass

5.4g
