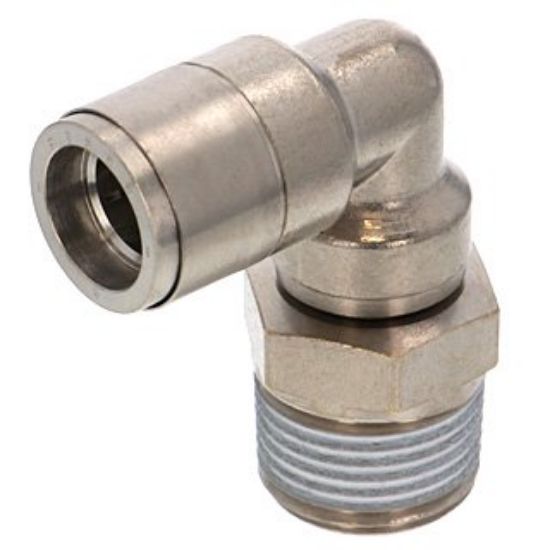

Pisco KL8-03 Brass Fitting

Pisco KL8-03 Brass Fitting
Manufacturer: Pisco
SKU: PS-KL8-03
Manufacturer part number: KL8-03

Pisco KL8-03 Brass Fitting

Size
Tube outer diameter (φD): 8mm
screw size (R): R3/8

Features
● In addition to the main body, the open ring also uses brass. Ideal for piping in sparking environments and high temperature environments.
- Since the cover is attached to the open ring, there is no malfunction of the opening ring due to sputtering. Ideal for sputtering environments.

Specifications
● Fluid used: air, water (with conditions), heat medium oil (conditioned)
● Maximum working pressure: 1.0 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 100 °C (without freezing)
* When the fluid used is water or heat medium oil, be sure to observe the following conditions.
1. When using water and heat media oil, keep the surge pressure below the maximum working pressure.
2. Be sure to use an insert ring when using water or heat medium oil.

Material
● Metal body: brass + electroless nickel plating
● Seal rubber: HNBR

Mass

55g
