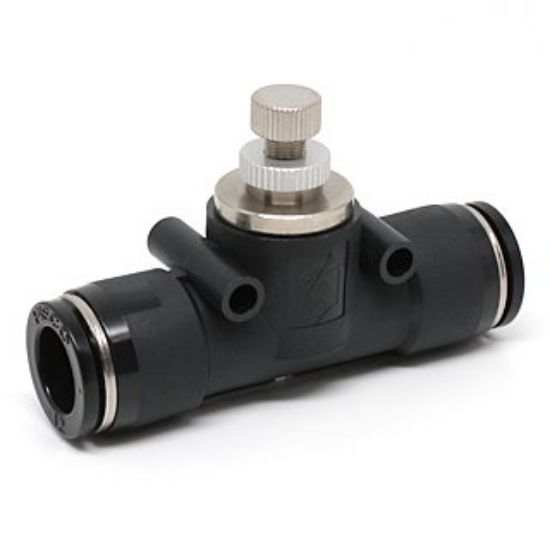

Pisco JSMU12 Flow Controller

Pisco JSMU12 Flow Controller

Size
Tube outer diameter (φD): 12mm

Applicable cylinder tube inner diameter
Max.φ80mm

Features
● The most standard drive device speed control valve.

Specifications
● Fluid used: Air
● Operating pressure range: 0.05 to 1.0 MPa
● Check valve working pressure: 0.005 MPa
● Operating temperature range: 0 to 60 °C (without freezing)


Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR
● Check packing: HNBR

Mass

65g
