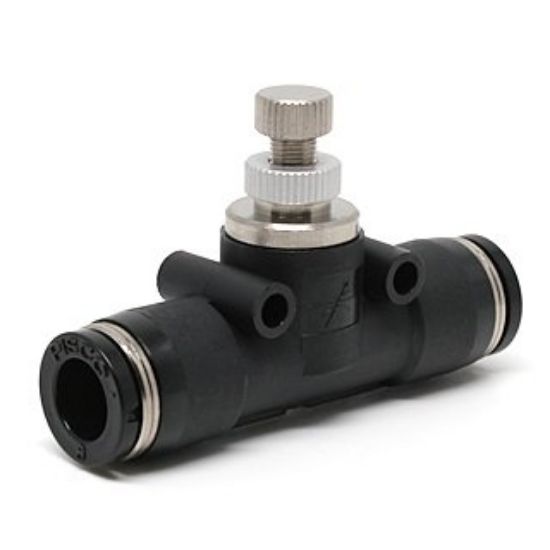

Pisco JNMU8 Needle Valve

Pisco JNMU8 Needle Valve
Manufacturer: Pisco
SKU: PS-JNMU8
Manufacturer part number: JNMU8

Pisco JNMU8 Needle Valve

Size
Tube outer diameter (φD): 8mm

Features
● Control the speed and air pressure signal of pneumatic equipment. Flow rate control while air is flowing is possible.
- Small union type succeeded in reducing the price by 20% and miniaturization compared to conventional products with a new structure.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

25g
