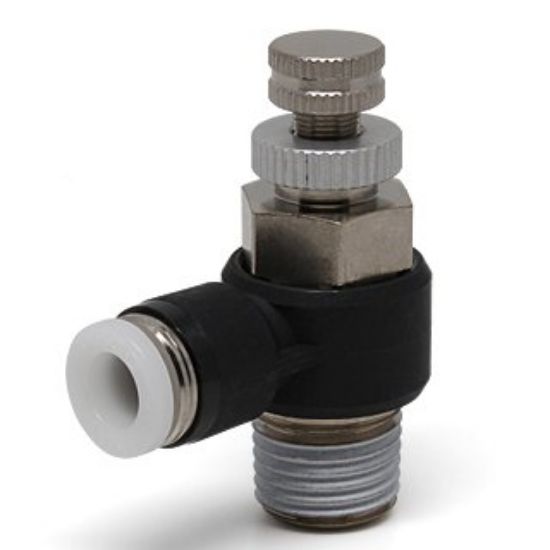

Pisco JNC1/4-02 Needle Valve

Pisco JNC1/4-02 Needle Valve
Manufacturer: Pisco
SKU: PS-JNC1/4-02
Manufacturer part number: JNC1/4-02

Pisco JNC1/4-02 Needle Valve

Size
Tube outer diameter (φD): 1/4
screw size (R): R1/4

Features
● Control the speed and air pressure signal of pneumatic equipment. Flow rate control while air is flowing is possible.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

39g
