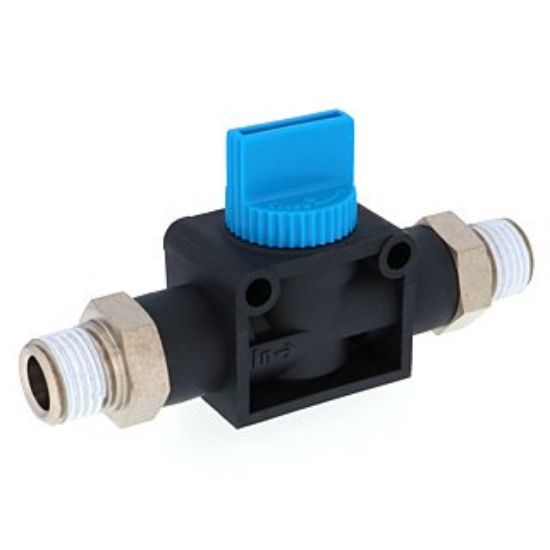

Pisco HV02-02 Hand Valve

Pisco HV02-02 Hand Valve
Manufacturer: Pisco
SKU: PS-HV02-02
Manufacturer part number: HV02-02

Pisco HV02-02 Hand Valve

Size
Screw size (IN) (R1): R1/4
Screw size (OUT) (R2): R1/4

Features
● Open and close the pneumatic input to the equipment.
● When frequently maintaining equipment on the output side, a three-way valve that can release residual pressure on the output side (secondary side) is recommended.
- Two-way valve without exhaust function is also available.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Seal rubber: NBR

Mass

80g
