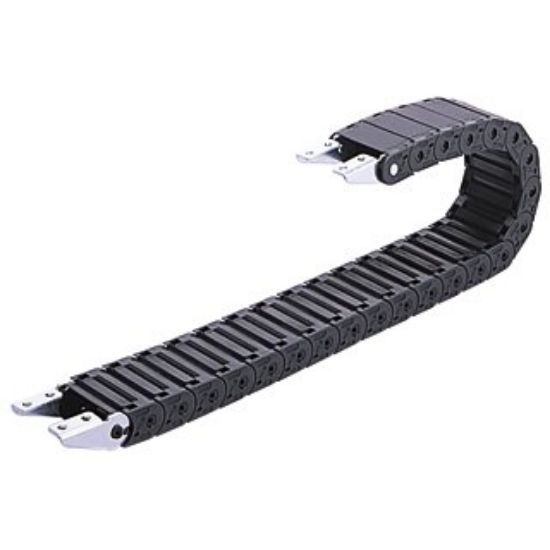

Pisco HPO512-R100 Cable Chains

Pisco HPO512-R100 Cable Chains

Size
Appearance dimensions (height × width): 60×117mm
Storage dimensions (height × width): 45×97 mm
Maximum cable hose outer diameter: 36 mm
Pitch: 60 mm
Number of links (/m): 17

Minimum bending radius
100mm

Flap opening and closing method
Left and right opening and closing (full cover type)

Features
● Full cover type where dust, dust, etc. are difficult to enter inside.
- Flap can be opened and closed from either. Regardless of the installation direction, you can perform tasks such as replacing and adding cables. You can also see the contents of the cable even with the flaps closed.
- Excellent safety and durability, easy to handle and smooth movement.
- Protects the cable hose according to all linear motion and composite motion of the movable part of the equipment.

Specifications
● Operating temperature range: -10 to 80 °C
● Operating environment conditions: Please avoid hot water in the atmosphere of acid and alkali.
- Maximum free span: 4.5m
● Maximum movement stroke: 8 .8m
● Maximum cable hose weight: 30.6 kg / m
● Maximum movement speed: 2.5m/s

Mass
2.15kg / m

Material
●PA6 GF20%
