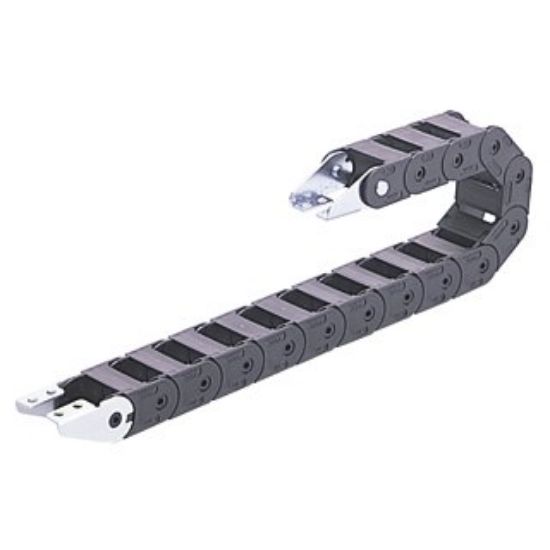

Pisco HPK101-R19 Cable Chains

Pisco HPK101-R19 Cable Chains

Size
Exterior dimensions (height × width): 12×16mm
Storage dimensions (height × width): 9×9 mm
Maximum cable hose outer diameter: 7 mm
Pitch: 20 mm
Number of links (/m): 50

Minimum bending radius
19mm

Flap opening and closing method
Fixed

Features
● Ideal for cable guides of dedicated machines mass-produced at low cost.
- It is available from a small type that can store cables from one.
● You can check the contents of the cable even from the outside.

Specifications
● Operating temperature range: -10 to 80 °C
● Operating environment conditions: Please avoid hot water in the atmosphere of acid and alkali.
● Maximum free span: 0.5m
●Maximum movement stroke: 0.8m
●Maximum cable hose weight: 1.5kg/m
●Maximum movement speed: 1m/s

Mass
0.105kg/m

Material
●PA6 GF20%
