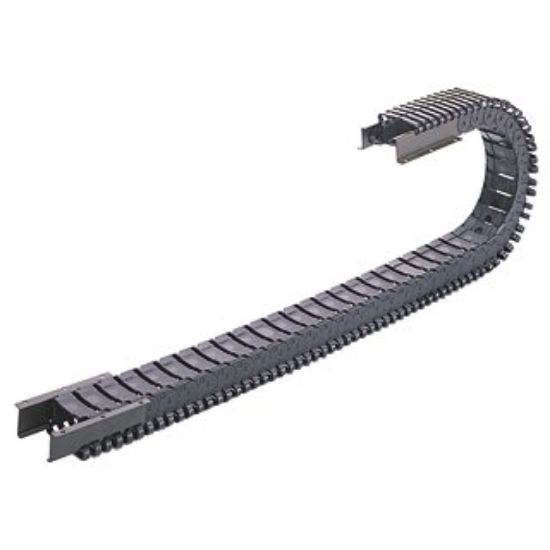

Pisco HPC50 Cable Chains

Pisco HPC50 Cable Chains
Manufacturer: Pisco
SKU: PS-HPC50
Manufacturer part number: HPC50

Pisco HPC50 Cable Chains

Size
Appearance dimensions (height × width): 26×48mm
Storage dimensions (height × width): 20.5×28 mm
Maximum cable hose outer diameter: 16 mm
Pitch: 25 mm
Number of links (/m): 40

Minimum bending radius
60mm

Flap opening and closing method
Central cutting type

Features
● Low noise is realized by adopting a fine block configuration and special engineering plastic.
- Flap split from the center into two pieces, push the cable in, add it by simply pulling, can be taken out.

Specifications
● Operating temperature range: 0 to 50 °C
● Operating environment conditions: In the atmosphere of acid and alkali, please avoid hot water.
● Maximum free span: 1.06m
●Maximum movement stroke: 1.9m
●Maximum cable hose weight: 5kg/m
●Maximum travel speed: 2.5m/s

Mass
0.358kg/ m

Material
●PA6
