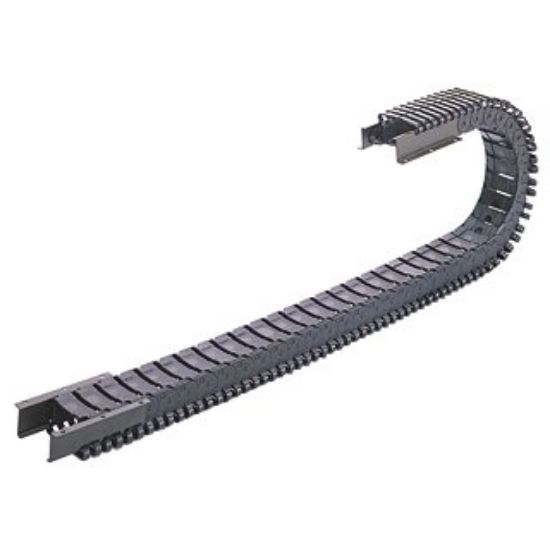

Pisco HPC200 Cable Chains

Pisco HPC200 Cable Chains

Size
Appearance dimensions (height × width): 44×84mm
Storage dimensions (height × width): 35.5×54 mm
Maximum cable hose outer diameter: 28 mm
Pitch: 25 mm
Number of links (/m): 40

Minimum bending radius
105mm

Flap opening and closing method
Central cutting type

Features
● Low noise is realized by adopting a fine block configuration and a special engineering plastic.
- Flap split from the center into two pieces, push the cable in, add it by simply pulling, can be taken out.

Specifications
● Operating temperature range: 0 to 50 °C
● Operating environment conditions: In the atmosphere of acid and alkali, please avoid hot water.
● Maximum free span: 1m
● Maximum movement stroke: 1.8m
● Maximum cable hose weight: 5 kg / m
● Maximum movement speed: 2.5 m / s

Mass
1.056 kg / m

Material
●PA6
