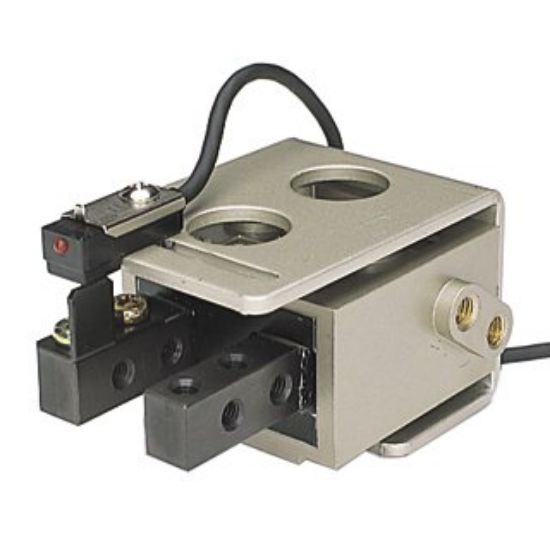

Pisco HP20P-S Grippers

Pisco HP20P-S Grippers

Size
Cylinder cross-sectional area: 3.3 cm²

Features
● Parallel chucks that realize space saving, weight reduction, and high cycle by compact elliptical cylinder.
- Plastic type that realized weight reduction.
● The sensor type can be operated and clamped at a glance by flashing the LED. (Since the proximity switch slides sideways, it can be adjusted according to the workpiece.)

Specifications
● Operation method: Double acting type
● Fluid used: Compressed air (no refueling)
● Operating pressure range: 0.3 to 0.7 MPa
●Operating temperature range: -10 to 60 °C (However, use in a non-freezing state)
- Repeat accuracy: ± 0.05mm (however, midpoint of the horn)
● Maximum frequency of use: 100 C.P .M.

Material
● Body: PA
● Tsume: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
201g
