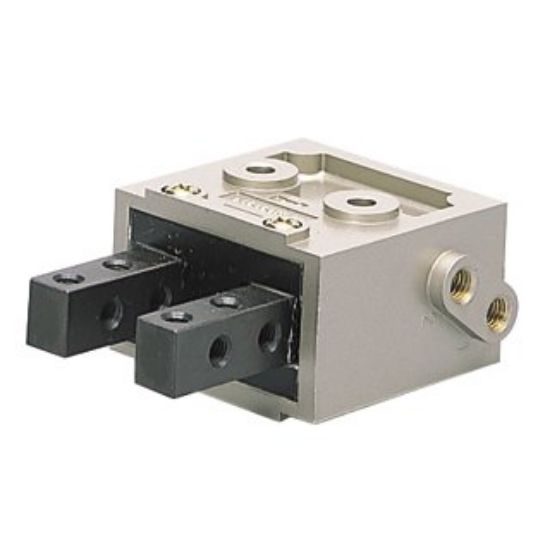

Pisco HP20P Grippers

Pisco HP20P Grippers
Manufacturer: Pisco
SKU: PS-HP20P
Manufacturer part number: HP20P
$280.01 Call to Order

Pisco HP20P Grippers

Size
Cylinder cross-sectional area: 3.3 cm²

Features
● Parallel chucks that realize space saving, weight reduction, and high cycle by compact elliptical cylinder.
- Plastic type that realized weight reduction.

Specifications
● Operation method: Double acting type
● Fluid used: Compressed air (no refueling)
● Operating pressure range: 0.3 to 0.7 MPa
●Operating temperature range: -10 to 60 °C (but use in a non-frozen state)
- Repeat accuracy: ± 0.05mm (however, midpoint of the gloss)
● Highest frequency of use: 100 C.P .M.

Material
● Body: PA
● Peach: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
110g
