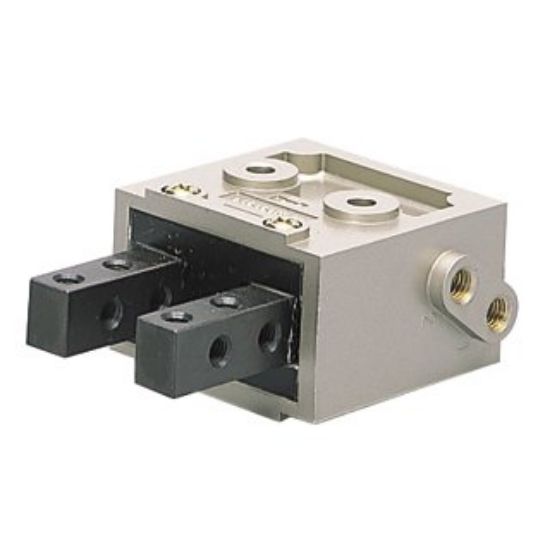

Pisco HP20D Grippers

Pisco HP20D Grippers

Size
Cylinder cross-sectional area: 3.3 cm²

Features
● Parallel chucks that realize space saving, weight reduction, and high cycle by compact elliptical cylinder.
- Die-cast type with excellent durability.

Specifications
● Operating method: Double acting type
● Fluid used: Compressed air (no refueling)
● Operating pressure range: 0.25 to 0.9 MPa
● Operating temperature range: -10 to 60 °C (However, use in a non-frozen state)
- Repeat accuracy: ±0.05mm (however, midpoint of the plum)
● Maximum frequency of use: 100 C.P .M.

Material
● Body: Zinc die casting
● Tsume: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
180g
