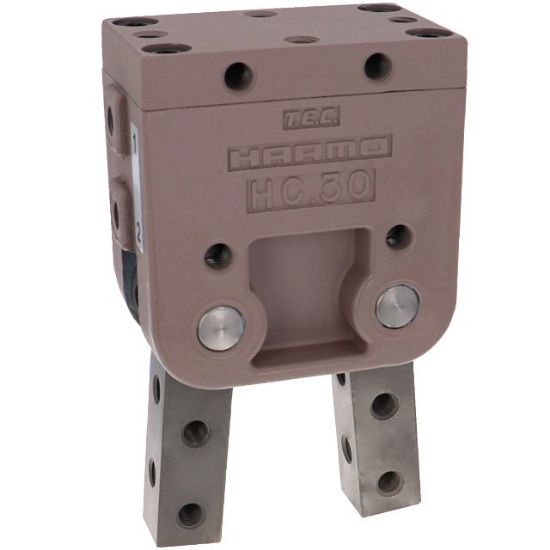

Pisco HC30AD Grippers

Pisco HC30AD Grippers

Size
Cylinder cross-sectional area: 8.8cm²

Features
● Compact elliptical cylinder saves space, reduces weight, and achieves high cycle.
- Die-cast type with excellent durability.

Specifications
● Operating method: Double acting type / Single acting type
● Use fluid: Compressed air (no refueling)
● Operating pressure range: 0.2 to 0.7 MPa
●Operating temperature range: -10 to 60 °C (however, use in a non-frozen state)
- Repeat accuracy: ±0.1mm (however, midpoint of the turtle)
● Highest frequency of use: 100 C.P. .M.

Material
●Body: Zinc die-cast
●Tsume: Chromium molybdenum
●Piston: POM
- Seal rubber: NBR

Mass
450g
