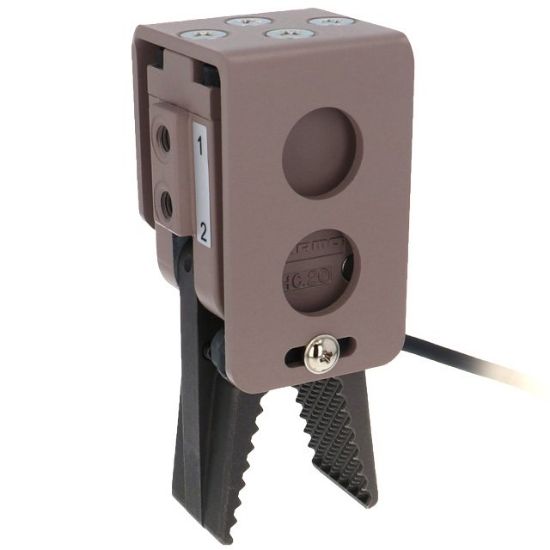

Pisco HC20BDX-S Grippers

Pisco HC20BDX-S Grippers

Size
Cylinder cross-sectional area: 4.3 cm²

Features
● Compact elliptical cylinder saves space, reduces weight, and achieves high cycle.
- Die-cast type with excellent durability.
● The sensor type can be operated and clamped at a glance by flashing the LED. (Since the proximity switch slides sideways, it can be adjusted according to the workpiece.) - The
type with finger tool does not require the production of attachments, ideal for plastic molded products (spool removal).

Specifications
● Operating method: Double acting type / Single acting type
● Use fluid: Compressed air (no refueling)
● Operating pressure range: 0.2 to 0.7 MPa
●Operating temperature range: -10 to 60 °C (however, use in a non-frozen state)
- Repeat accuracy: ±0.1mm (however, midpoint of the plum
 ● Maximum frequency of use: 100 C.P. .M.

Material
● Body: Zinc die-cast
● Tsume: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
304g
