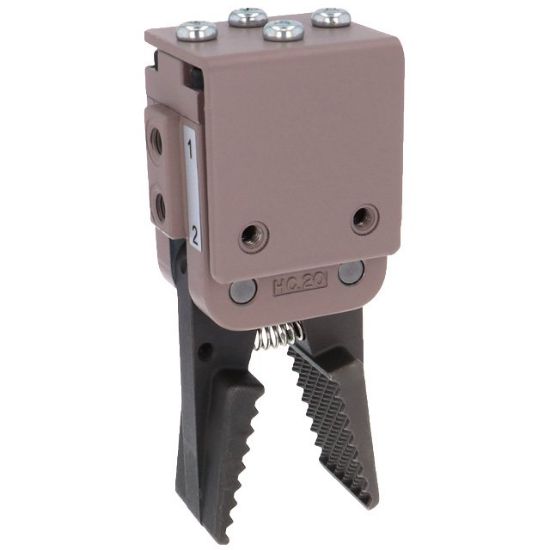

Pisco HC20BDX-B Grippers

Pisco HC20BDX-B Grippers
Manufacturer: Pisco
SKU: PS-HC20BDX-B
Manufacturer part number: HC20BDX-B
$212.50 Call to Order

Pisco HC20BDX-B Grippers

Size
Cylinder cross-sectional area: 4.3 cm²

Features
● Compact elliptical cylinder saves space, reduces weight, and achieves high cycle.
- Die-cast type with excellent durability.
- The type with finger tool does not require the production of attachments, ideal for plastic molded products (spool removal).

Specifications
● Operating method: Double acting type / Single acting type
● Use fluid: Compressed air (no refueling)
● Operating pressure range: 0.2 to 0.7 MPa
●Operating temperature range: -10 to 60 °C (however, use in a non-frozen state)
- Repeat accuracy: ±0.1mm (however, midpoint of the plum)
● Maximum frequency of use: 100 C.P .M.

Material
● Body: Zinc die-cast
● Tsume: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
261g
