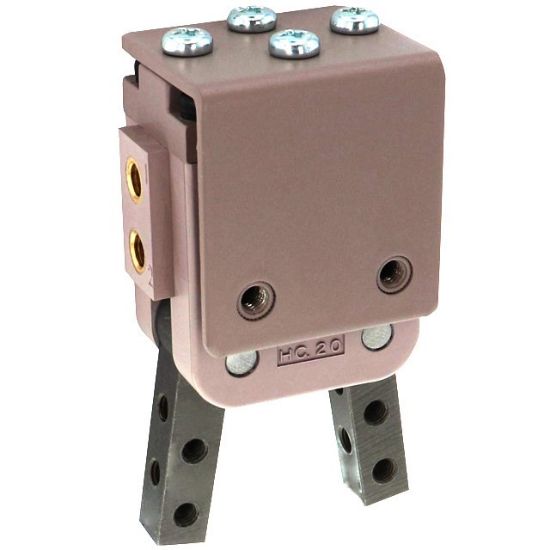

Pisco HC20AP-B Grippers

Pisco HC20AP-B Grippers
Manufacturer: Pisco
SKU: PS-HC20AP-B
Manufacturer part number: HC20AP-B
$172.50 Call to Order

Pisco HC20AP-B Grippers

Size
Cylinder cross-sectional area: 4.3 cm²

Features
● Compact elliptical cylinder saves space, reduces weight, and achieves high cycle.
- Plastic type that realized weight reduction.

Specifications
● Operating method: Double acting type / Single acting type
● Fluid used: compressed air (no refueling)
● Operating pressure range: 0.2 to 0.6 MPa
● Operating temperature range: -10 to 60 °C (but use in a non-frozen state)
- Repeat accuracy: ±0.1mm (however, midpoint of the tsume)
● Maximum frequency of use: 100 C.P .M.

Material
● Body: PA
● Peach: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
140g
