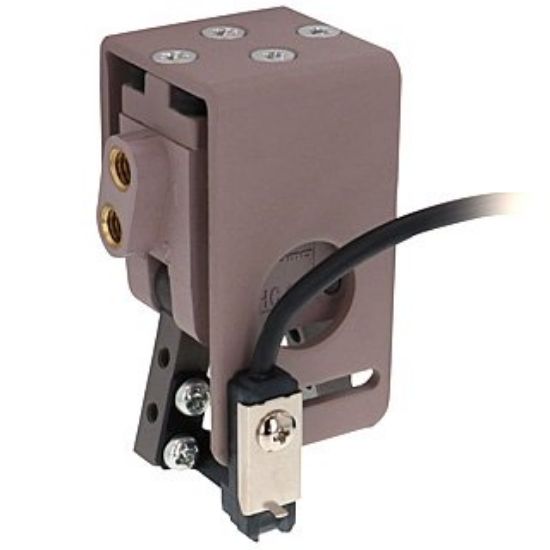

Pisco HC15AP-S Grippers

Size
Cylinder cross-sectional area: 2.1 cm²

Features
● Compact elliptical cylinder saves space, reduces weight, and achieves high cycle.
- Plastic type that realized weight reduction.
● The sensor type can be operated and clamped at a glance by flashing the LED. (Since the proximity switch slides sideways, it can be adjusted according to the workpiece.)

Specifications
● Actuation method: Double acting type / Single acting type
● Fluid used: Compressed air (no refueling)
● Operating pressure range: 0.2 to 0.6 MPa
●Operating temperature range: -10 to 60 °C (But use in a non-frozen state)
- Repeat accuracy: ±0.1mm (however, midpoint of the swallow)
● Maximum frequency of use: 100 C.P .M.

Material
● Body: PA
● Peach: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

mass
112g
