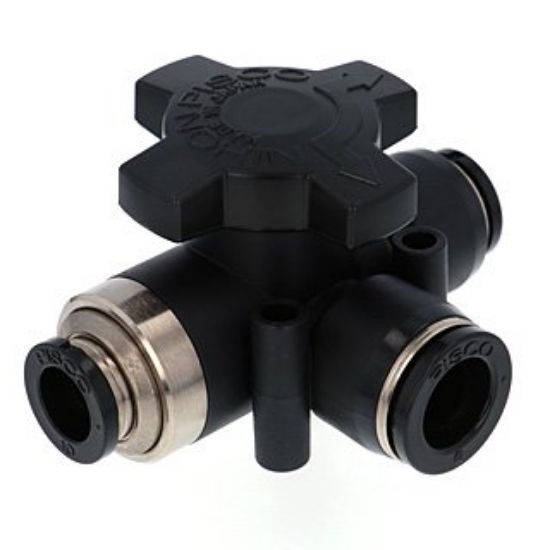

Pisco HBV12-10 Change Valve

Pisco HBV12-10 Change Valve

Size
Tube outer diameter (φD1): 12 mm
Tube outer diameter (φD2): 10 mm

Features
● Switch the air flow path by 90°.
● Lightweight and compact design.
- Excellent operability and easy to switch flow path.

Specifications
● Fluid used: Air
● Maximum operating pressure: 0.7 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

125g
