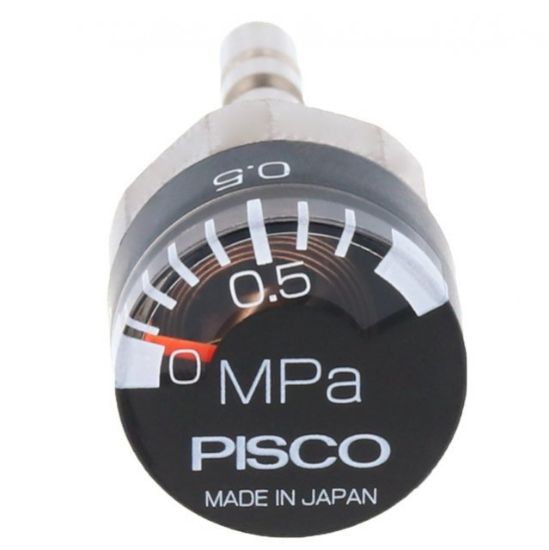

Pisco GPJ4 Gauge

Pisco GPJ4 Gauge

Size
Applied fitting diameter (φD): 4 mm

Features
● The main body is compact and can be mounted in a small space.

Specifications
● Fluid used: Air
● Display pressure range: 0 to 0.8 MPa
● Accuracy: ±5% (full scale)
● Operating temperature range: 0 to 60? C (frozen)
● Scale angle: 150?

Material
●Cap: Acrylic
●Metal body: Brass + nickel plating
●Resin body PBT

Mass

8g
