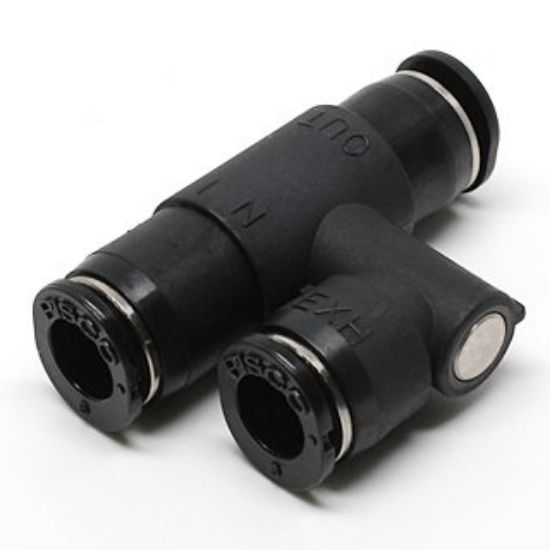

Pisco EQY-6 Quick Exhaust Valve

Pisco EQY-6 Quick Exhaust Valve
Manufacturer: Pisco
SKU: PS-EQY-6
Manufacturer part number: EQY-6

Pisco EQY-6 Quick Exhaust Valve

Size
Tube outer diameter (input port) (φD1): 6mm
Tube outer diameter (output port) (φD2): 6mm
Tube outer diameter (exhaust port) (φD3): 6mm

Features
● Supports high-speed drive of cylinders.

Specifications
●Fluid used: Air
●Operating pressure range: 0.1 to 0.7 MPa
●Operating temperature range: 5 to 60°C (without freezing)
●Minimum working pressure: 0.05 MPa

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR, HNBR

Mass

7.6g
