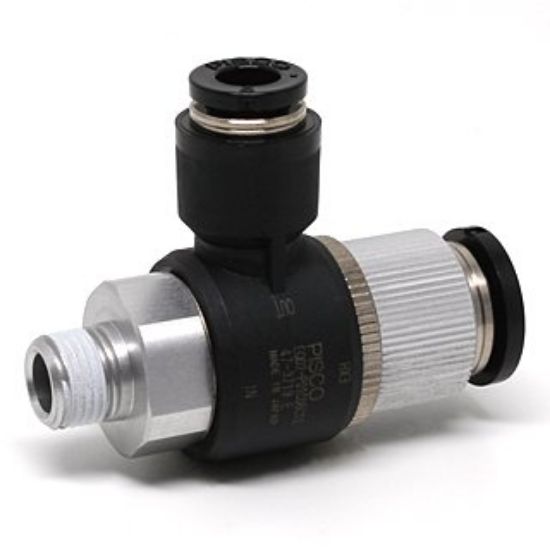

Pisco EQ02-P01C06C10 Quick Exhaust Valve

Pisco EQ02-P01C06C10 Quick Exhaust Valve

Size
Screw size (input port) (R): R1/8
tube outer diameter (output port) (φD1): 6 mm
Tube outer diameter (exhaust port) (φD2): 10mm

Features
● Supports high-speed drive of cylinders.

Specifications
●Fluid used: Air
●Operating pressure range: 0.1 to 0.7 MPa
●Operating temperature range: 5 to 60°C (without freezing)
●Minimum working pressure: 0.05 MPa

Material
● Resin body: PBT
● Metal body: Aluminum
● Open ring: POM
●Seal rubber: NBR, HNBR

Mass

33g
